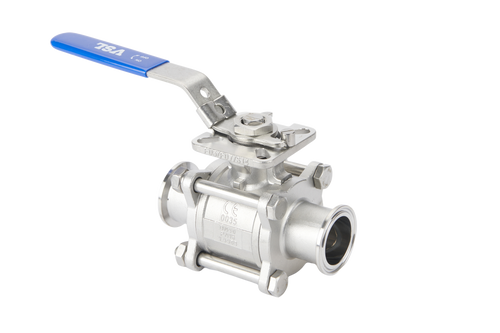

CLAMP END ST/ST 3PCE BV D/MOUNT LEVER OP

Price on request

Industrial valve catalogue item. Request a quote for specification and availability.

Request a quote

Send the product name, size, pressure, material, connection, actuation and any approval requirements so Valves4You Ltd can confirm the best route.

Request quote for this product Call 0161 327 4231

Need a different size, material or configuration?

The products shown online represent only part of the valves, actuators and accessories we can source. Send us the valve type, manufacturer, part number, material, size, pressure, temperature or application details. We will check availability and suitable alternatives.

Ask us to source it

SKU: V4Y-171 Category: Ball Valves

Description

Hygienic Ball Valve
ATEX Approved
Stainless Steel
Viton Seal Material
TFM 1600 Seat Material
Working Temperature -20°C to +200°C
Maximum Working Pressure 10 bar
Features: Available in either butt weld OD or clamp ends. Cavity filled seats. Direct mount ISO 5211. ATEX approved. Anti-static device. Investment casting. Blowout proof stem. Locking lever. Suitable for saturated steam up to 10 bar.

Specification and quote support

This description has been migrated from the legacy catalogue. Final suitability, materials, sizes, pressure and temperature limits, certification or approval status, and availability must be confirmed for the application at quotation.
