Understanding Electric Actuator Systems for Efficiency

When it comes to improving operational efficiency in industrial and residential settings, understanding the role of electric actuator systems is crucial. These devices are the unsung heroes behind the smooth operation of valves, dampers, and other mechanical components. Whether you’re working in oil and gas, chemical processing, water treatment, or food and beverage industries, knowing how electric actuators function and how to select the right system can save time, reduce costs, and enhance safety.

Electric actuator systems have evolved significantly over the years, offering precise control, reliability, and energy efficiency. In this post, I’ll walk you through the essentials of these systems, share practical insights on valve materials, and highlight some unexpected facts that might just change how you think about automation.

What Are Electric Actuator Systems?

Electric actuator systems are devices that convert electrical energy into mechanical motion. They are primarily used to automate the opening and closing of valves or to control the position of dampers and other equipment. Unlike manual operation, electric actuators provide consistent, repeatable, and remote control, which is essential for modern industrial processes.

These systems typically consist of:

• Electric motor: Powers the actuator.

• Gearbox: Converts motor speed into torque.

• Control unit: Interfaces with process control systems.

• Feedback sensors: Provide position and status information.




The integration of these components allows for precise control over flow rates, pressure, and other critical parameters.

Why Choose Electric Actuator Systems?

There are several reasons why electric actuator systems are preferred in many applications:

• Energy efficiency: They consume power only when moving, unlike pneumatic or hydraulic systems that require continuous energy input.

• Precision: Fine control over valve positioning improves process accuracy.

• Low maintenance: Fewer moving parts and no need for compressed air or hydraulic fluids.

• Safety: Remote operation reduces the need for personnel to be near hazardous areas.




Electric actuator mounted on valve

Selecting the Right Valve Materials for Your Actuator System

Choosing the correct valve material is just as important as selecting the actuator itself. The material affects durability, compatibility with the process media, and overall system efficiency. Here’s a quick comparison of common valve materials used in conjunction with electric actuator systems:

| Material | Advantages | Typical Applications | Considerations |

|----------------|---------------------------------------|------------------------------------------|---------------------------------------|

| Stainless Steel | Corrosion-resistant, durable | Chemical processing, food and beverage | Higher cost, but long-lasting |

| Brass | Good corrosion resistance, cost-effective | Water treatment, HVAC | Not suitable for highly corrosive media |

| PVC | Lightweight, corrosion-resistant | Water treatment, low-pressure systems | Limited temperature and pressure range |

| Carbon Steel | Strong, cost-effective | Oil and gas, power generation | Requires protective coatings to prevent corrosion |

When pairing valves with electric actuators, consider the torque requirements. For example, a stainless steel valve in a high-pressure system will need a more powerful actuator than a PVC valve in a low-pressure application.

Unexpected Fact: Material Impact on Actuator Life

Did you know that the choice of valve material can directly affect the lifespan of your actuator? Heavier valves made from metals like stainless steel require actuators with higher torque ratings, which can lead to increased wear and tear if the actuator is undersized. Conversely, lightweight materials reduce actuator load, potentially extending its operational life.

How Electric Actuator Systems Improve Process Efficiency

Efficiency is the name of the game in industrial automation. Electric actuator systems contribute to this in several ways:

1. Precise Control and Repeatability

Electric actuators provide exact positioning, which means valves open or close to the precise degree needed. This precision reduces waste, improves product quality, and optimises energy use.

2. Integration with Automation Systems

Modern electric actuators can be integrated with SCADA and DCS systems, allowing for real-time monitoring and control. This integration enables predictive maintenance, reducing downtime and unexpected failures.

3. Energy Savings

Unlike pneumatic actuators that require continuous compressed air, electric actuators only consume power during movement. This characteristic can lead to significant energy savings, especially in large-scale operations.

4. Reduced Maintenance Costs

Electric actuators have fewer components that wear out compared to hydraulic or pneumatic systems. This reliability translates into lower maintenance costs and less frequent replacements.

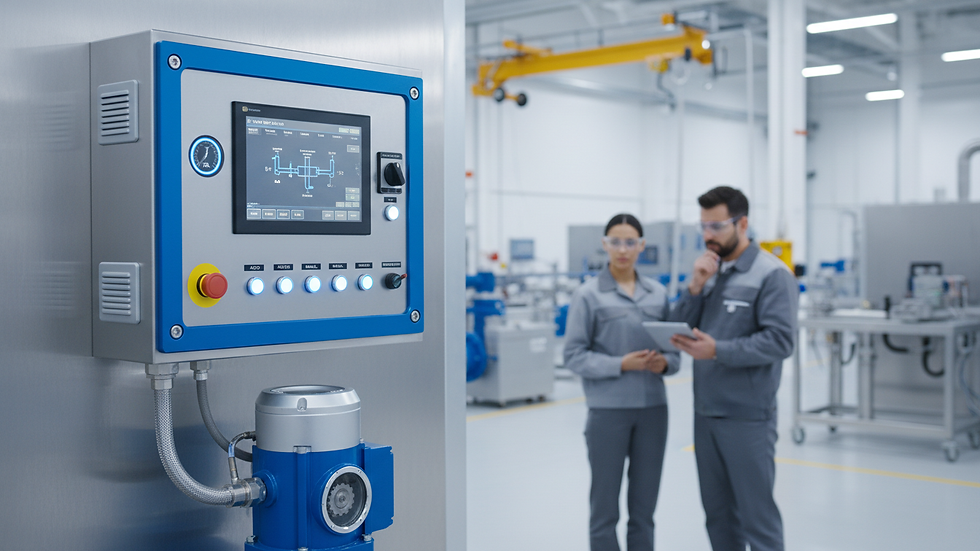

Electric actuator control panel in industrial environment

Practical Tips for Optimising Electric Actuator Systems

To get the most out of your electric actuator systems, consider these actionable recommendations:

• Right-size your actuator: Avoid undersizing or oversizing. Use torque calculations based on valve type, size, and operating conditions.

• Choose compatible materials: Ensure valve and actuator materials suit the process media and environmental conditions.

• Implement regular testing: Periodic functional tests help detect issues early.

• Use smart controls: Leverage actuators with built-in diagnostics and communication protocols.

• Plan for environmental factors: Consider temperature, humidity, and exposure to corrosive substances when selecting actuators and valves.




The Future of Electric Actuator Systems

The landscape of electric actuator systems is evolving rapidly. Innovations such as IoT-enabled actuators, AI-driven predictive maintenance, and energy harvesting technologies are set to revolutionise how industries manage automation.

For example, smart actuators can now communicate their status and health to central control systems, allowing engineers to schedule maintenance only when necessary. This approach reduces downtime and extends equipment life.

Moreover, advances in materials science are leading to lighter, stronger valve components that reduce actuator load and improve overall system efficiency.

Understanding the nuances of electric actuator systems and their interaction with valve materials is key to optimising your operations. By selecting the right components and leveraging modern technology, you can achieve greater efficiency, reliability, and cost savings.

If you want to explore more about electric actuators, their types, and applications, feel free to reach out or browse our extensive product range. We’re here to help you make informed decisions that drive your business forward.
